台灣精品-偉本鋁門窗WB-888型
Wen Ben  W AR M& BE AU TY Series
  Characteristics

WB-888/808
  Secure & Airtight Windows/Doors

WB-868
  Panic & Casement Project Out Window
WB-858
  Glass Interior Door & Screen Door
WB-862/1062/1262
  Patent & Airtight Windows/Doors
Replacement Windows
Safety Windows & Doors
Glass Room/Rain Shelter
Aluminum Curtain Wall
Aluminum Extrusion

Wen Ben Warm & Beauty Best Series Three Feathures:
The ever living and developing spirit of Wen Ben Aluminum brings you doors & windows with superior quality in the "Creative Era of Design", for the building material. "WB Warm & Beauty Best Series" retain the deep beauty of those traditional alu doors& windows processing nobility, elegance and intricacy. WB Alu Doors & Windows not only possess beauty, but will characterize your doors & windows systems with "strength","Security" and "Fire Protection." If you want to select a beautiful door & window that reflects your individual style and taste without the prohibitive expense, then our W AR M& BE AU TY Best Series door & window systems is designed for you.
STRENGTH :
Made of 6063-T5 powerful aluminium extrusions which is no rustiness. We choose special hardware to match doors & windows. The wind pressure loading is 360kgf/㎡.( It is like the hurricane or typhoon in 51m/sec).
AIRTIGHTNESS :
The volume of leaked air is less than 2m3/hr㎡, measurement taken of the amount of air flow is 1、3、5kgf/㎡. It is not only proof storm but prevent warm or cold air flowing outside.
WATERPROOFING :
The function of waterproof is to 50kgf/㎡, after applying a 25kgf/㎡(245.2Pa) preload to both sides of aluminium windows, It prevent the rain seeping into house which cause by strom and pressure differential.

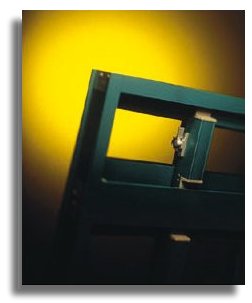

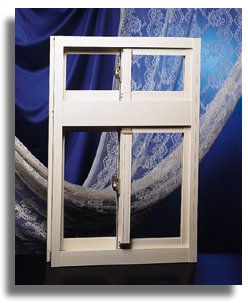

WB-888/808 Secure & Airtight Windows/Doors
Detachable Windows/Doors From Inside
(WB-888 Double Sliding Windows/WB-808 Double Sliding Doors)

WB-808型安全落地門窗      WB-888型安全氣密窗

PERFORMANCE:
  Wind Loading:360kgf/㎡      Water Penetration:50kgf/㎡
  Air Infiltration:2m3/hr㎡       Sound Insulation:25db

ADVANTAGE:
˙Detachable from inside, easy to clean and maintain
˙Stream-lined style design, easy and smooth sliding
˙Hollow chamber has more space for reinforcement-improves resistance to wind pressure
˙Downward(step-wise design) slope for drainage
˙Adjustable nylon roll-easy to adjust during installation
˙High Quality weatherstripped provides excellent airtightness and prevents
    wind-whistle
˙Double glass strip-allows various thicknesses(3-12.5mm)of single glazing to be used
˙Excellent characteristics of wind loading, water penetration, air infiltration,
    sound insulation, heat partition and secure prevention.
˙Awarded many patents from Taiwan and abroad, process rapidly, and
     innovation value-added.
˙It is recyclable and environmentally safe.


WB-868 Panic & Casement Project Out Window
Include Invisible Flyscreens
The panic & casement project out window can be turned through 90 degrees
for cleaning and can also provide for emergency escape through the window opening.

WB-868型安全推射開窗      WB-868型安全推射開窗

PERFORMANCE:
Wind Loading:360kgf/㎡      Water Penetration:50kgf/㎡
Air Infiltration:2m3/hr㎡       Sound Insulation:25db

ADVANTAGE:
˙ Elegant and formal appearance.
˙ Enables cleaning from inside building.
˙ Enables an escape route.
˙ Fine sash design-increased area for light transmission.
˙ High performance testing.
˙ High-strength , heavy extruded aluminum framing. The Strongest of special double
    hollow design for wind load resistance is twice of typical aluminum window.
˙ Heavy duty top hung projection window hinges.
˙ The bottom fixed frame adopts the hidden hole design to drain water.
˙ Double Weather-stripped with interlock provides excellent air-tightness and
     prevent wind-whistle.
˙ It is recyclable and environmentally safe.

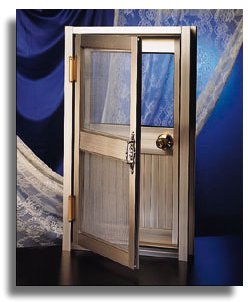

WB-858 Glass interior Door & Screen Door

WB-858鋁推拉門  WB-858鋁推拉門

ADVANTAGE:
˙Elegant and formal appearance.
˙Single or screen doors design, inward opening.
˙Door frame is 110mm, wide suitable for room, restroom, kitchen and all thriving areas.
˙Doorcase assemble weather-strip to reduce noise when the door is opening.
˙Bottom sash is hollow chamber, design to avoid quality deterioration, prevents water seepage.
˙Combine with fixed glazed or miscellaneous to create screen.
˙ It is recyclable and environmentally safe.


WB-862/1062/1262 Patent & Airtight Windows/Doors
Detachable Windows/Doors From Inside
(WB-862 Double Sliding Windows;WB-1062/1262 Double Sliding Doors)

WB-862型專利氣密窗  WB-1062型專利落地窗
PERFORMANCE:
Wind Loading:360kgf/㎡      Water Penetration:35kgf/㎡
Air Infiltration:8m3/hr㎡       Sound Insulation:20db

ADVANTAGE:
˙Detachable from inside, easy to clean and maintain
˙Stream-lined style design, easy and smooth sliding
˙Hollow chamber has more space for reinforcement-improves resistance to wind
    pressure
˙Downward slope for drainage
˙Adjustable nylon roll-easy to adjust during installation
˙High Quality weatherstripped provides excellent airtightness and prevents wind-whistle.
˙Double glass strip-allows various thicknesses(3-12.5mm)of single glazing to be used.
˙Excellent characteristics of wind loading, water penetration, air infiltration,
    sound insulation, heat partition and secure prevention.
˙Awarded many patents from Taiwan and abroad, process rapidly, and
    innovation value-added.
˙It is recyclable and environmentally safe.


Safety Windows & Doors
Adopt high strength aluminum alloyed materials, excellence strength &
safety. Customer designs, special size and OEM cases are welcome.

安全防盜凸窗/遮雨庇安全防盜廣角窗/遮雨庇/逃生窗安全防盜凸窗/遮雨庇

安全防盜門  安全防盜門

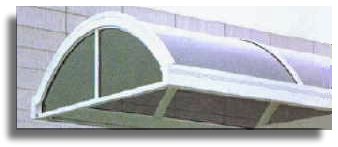

Glass Room/Rain Shelter
Adopt high strength aluminum alloyed materials, excellence strength &
safety. Customer designs, special size and OEM cases are welcome.

歐式採光罩造型 歐式採光罩造型 歐式採光罩造型

歐式採光罩造型 歐式採光罩造型

ADVANTAGE:
˙Special steel and aluminum material framework, attractive lustrous form.
˙Simple color brightness, high class appearance.
˙Enables your courtyard, garage..to have a durability that is sunshine and     rain-resistant.
˙High specification adjustment design that can be adjusted to a favorite shape to produce     a range of different shapes glass series to enable more variety in life.

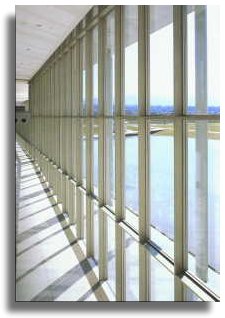

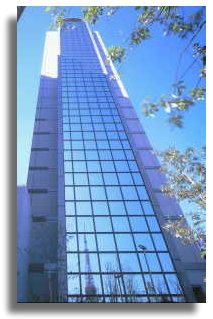

Aluminum Curtain Wall

鋁帷牆

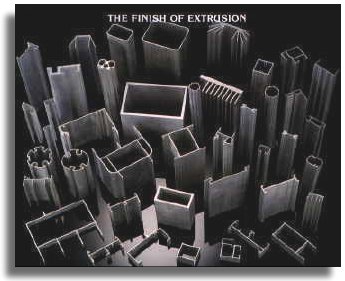

Aluminum Extrusion
Special products for special needs
We specialise in all kinds of high quality aluminum extrusions
Alloys: 6061, 6063, and special material extrusion.

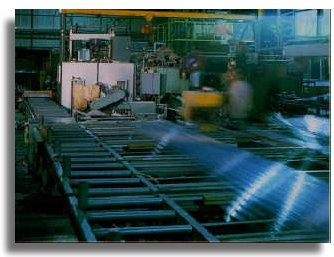

1700T擠壓機  鋁擠型成品
